Product Solution

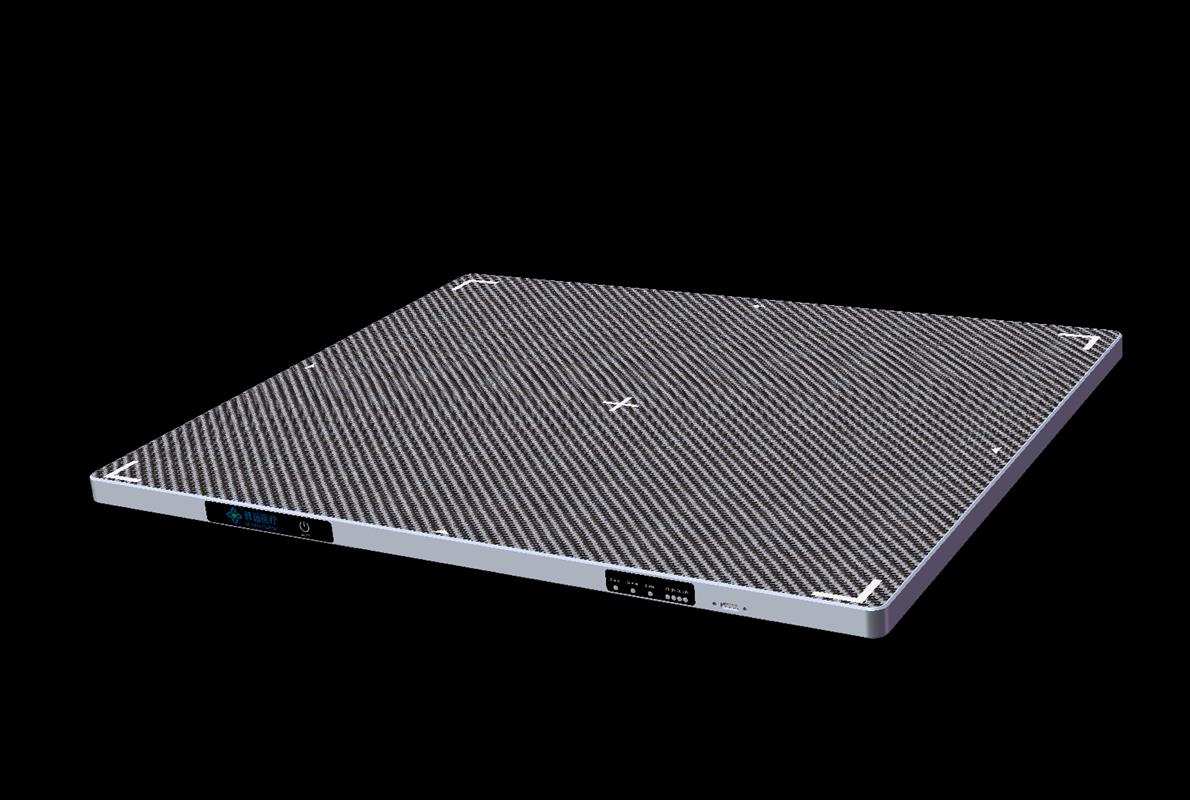

Mars 1417X is a new generation high-resolution 14 × 17 inch wireless static flat panel detector. It adopts a pixel size of 100 μ M's direct growth cesium iodide process, more reliable AED automatic exposure control, higher image detail expression and endurance, online charging, and high protection lightweight structural design are cutting-edge technologies, making it an excellent choice for high-end DR applications.
| Mars 1417X | |||
| Detector type | Amorphous silicon | Full image (s) | three |
| Scintillator type | Cesium iodide | Size (mm) | 384 x 460 x 15 |
| Imaging area (inches) | 14× 17 | Weight (kg) | three |
| Pixel size (μ m) | one hundred | Weight bearing (kg) | Average 300 |
| Spatial resolution (lp/mm) | four point three | Protection level | IP56 |
| AD conversion bit | sixteen | Operating temperature (℃) | 10-35 |
| Battery usage time (h) | eight point five | Storage temperature (℃) | -20-55 |
| Wireless transmission | 2.4G and 5G IEEE802.11 a/b/g/n/ac | Operating humidity (% RH) | 5-90 (without condensation) |
| Trigger mode | AED (optional)/soft trigger | Storage humidity (% RH) | 5-95 (without condensation) |
∨
